Sterseal material industry

Itron Fluoride Technology Co., Ltd. supplies the Hyperflon® Hyperion series filled modified PTFE materials for Sterfeng. Yi de long seal filled modified PTFE material performance is excellent, can be used in the vast majority of chemical fluids, solvents, as well as hydraulic oil, lubricating oil, its swelling is very small so can long-term play sealing performance, provide the full condition of static or dynamic (reciprocating or rotating motion) PTFE seal modified material, the use of temperature range from refrigerant to 300℃, The pressure per unit area can reach 700kg, and the moving speed is as high as 20m/s.

Itron special seal material advantage

Low friction coefficient
Low thermal expansion coefficient
Excellent rebound rate
Long reciprocating and rotating life under high pressure

e-mail：woody@itaflon.cn

Application Details

Stepseal’s PTFE compound solution

Teflon Sterseal material solution

Jiashan Yidelong Fluorine Technology Co., LTD

Jiashan Itaflon Fluoro Technology Co., Ltd.

Italy Edron Co., LTD

ITAFLON S.r.l.

Itron special seal material introduction

Itron special seal material introduction

Itron special seal material advantage

Low friction coefficient
Low thermal expansion coefficient
Excellent rebound rate
Long reciprocating and rotating life under high pressure

Please contact Itron Sales for detailed application conditions corresponding to Hyperflon ® series products, or request a sample.

Scan add public account to learn more

Sterseal material selection guide - material specific formula corresponding table

50.Hyperflon® SPTFE White PTFE Pure
50.Hyperflon® MPTFE White PTFEG Modified Pure
50.Hyperflon® UPTFE White PTFEG Supermodified Pure Material
50.Hyperflon® M1 Black PTFE+ Fiber/Molybdenum disulfide mixture
50.Hyperflon® T1 Blue PTFE+ Copper Pink Powder mixture
50.Hyperflon® BC Gray PTFE+ Copper powder Carbon Fiber mixture
50.Hyperflon® K1 black PTFE modified material + Carbon fiber
50.Hyperflon® N1 Brown PTFE+ Copper Pink Powder mixture

Steffen Material Selection Guide - Material Properties Correspondence Table

Steffen Series PTFE Composites -- Mechanical Properties (ASTM D4894)

Model	SPTFE	MPTFE	UPTFE	M1	T1	BC	K1	N1
Color	white	white	white	black	blue	grey	black	brown
Specific gravity（g/cm³）	2.134	2.145	2.151	2.260	3.032	2.604	2.074	3.885
Tensile strength(mpa)	36.83	33.99	35.1	26.86	23.86	17.09	18.49	21.81
Elongation at break（%）	420.80	488.03	505.4	344.34	391.71	315.72	401.97	271.97
Shore hardness（Mpa）	58	58	58	65	63	64	59	61
Shrinkage rate（%）	2.60	2.92	4.16	2.47	2.49	1.53	1.99	2.19
Coefficient of friction	-	-	-	0.202	0.274	0.221	0.113	0.203

Different formulations are selected according to different working conditions

For more stringent conditions, please consult the sales representative of Itron

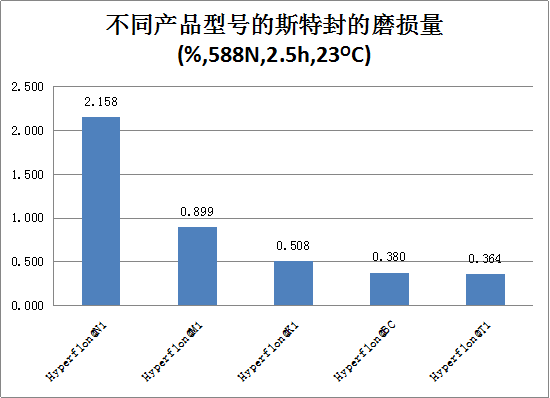

Steffen Series PTFE composites - Wear resistance

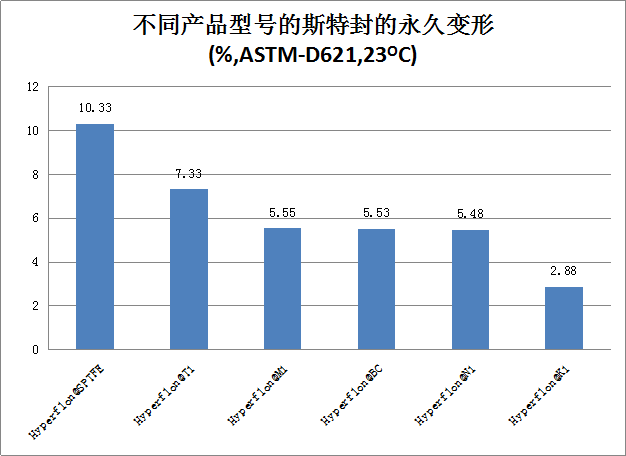

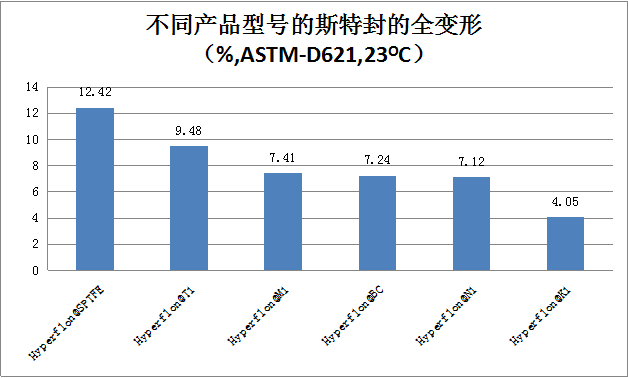

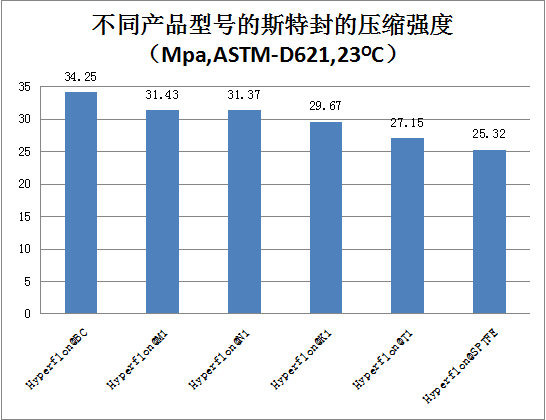

Steffen Series PTFE composites - Pressure resistance

Note: The above data in this specification is accurate and reliable, but does not imply that Itaflon assumes any warranty or liability. The technical data sheet does not exempt the customer from quality testing the suitability of the product through its own quality control procedures.
